Kamax / Motorcycle / Cub / Jade Green

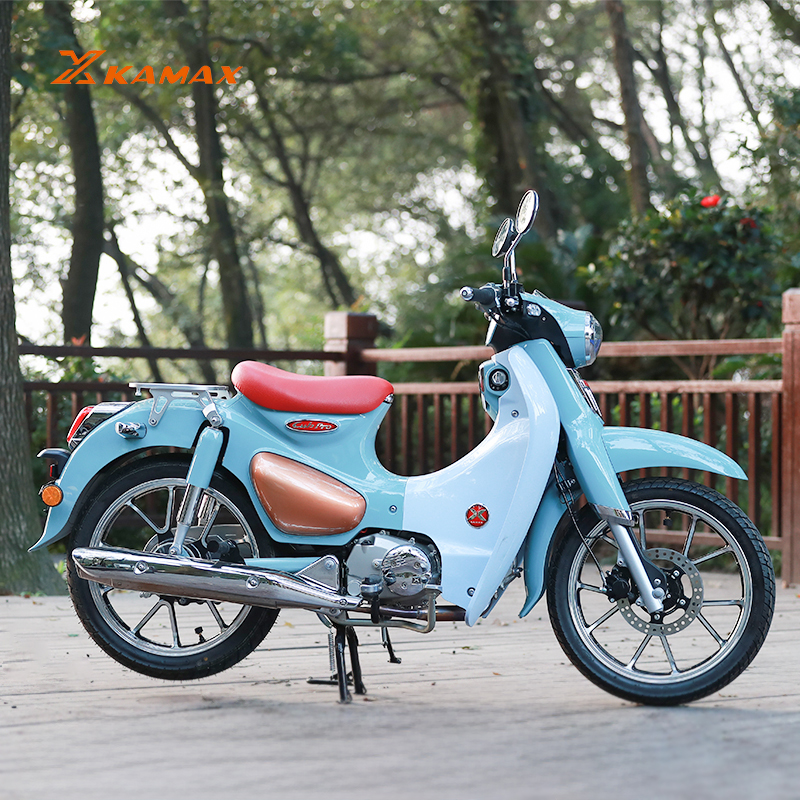

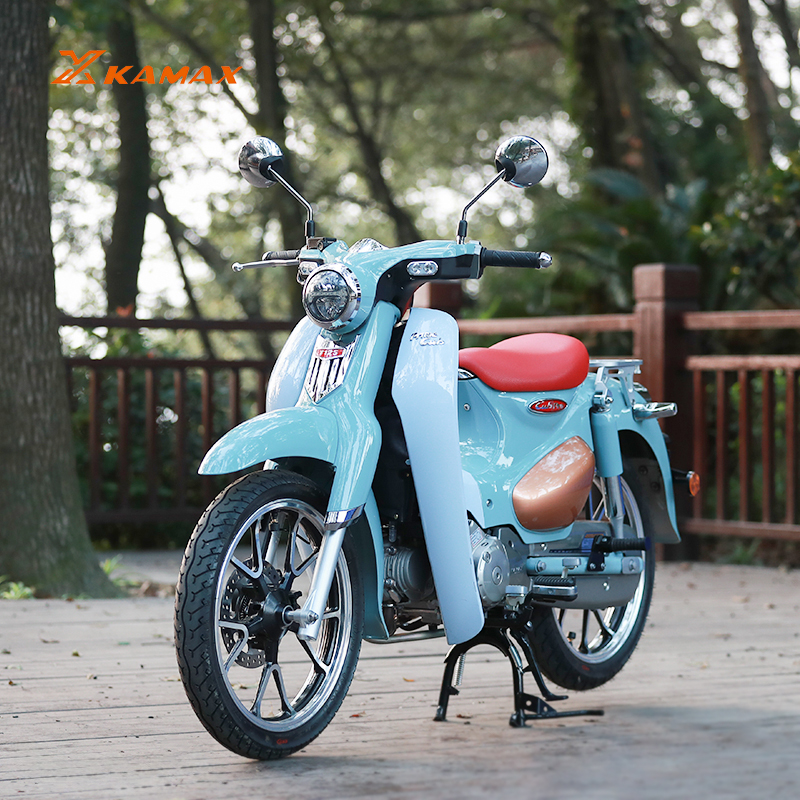

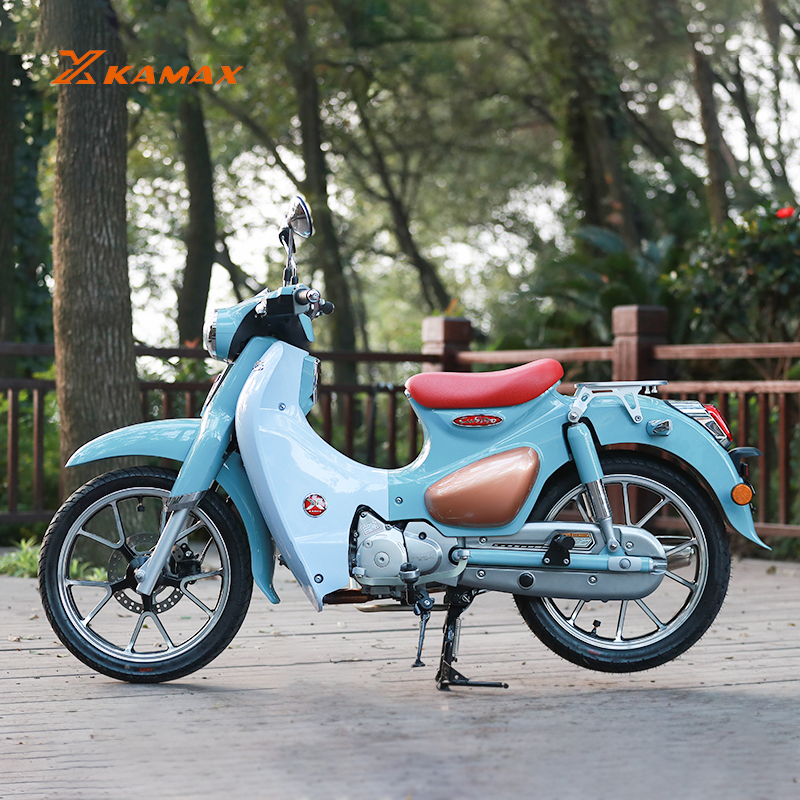

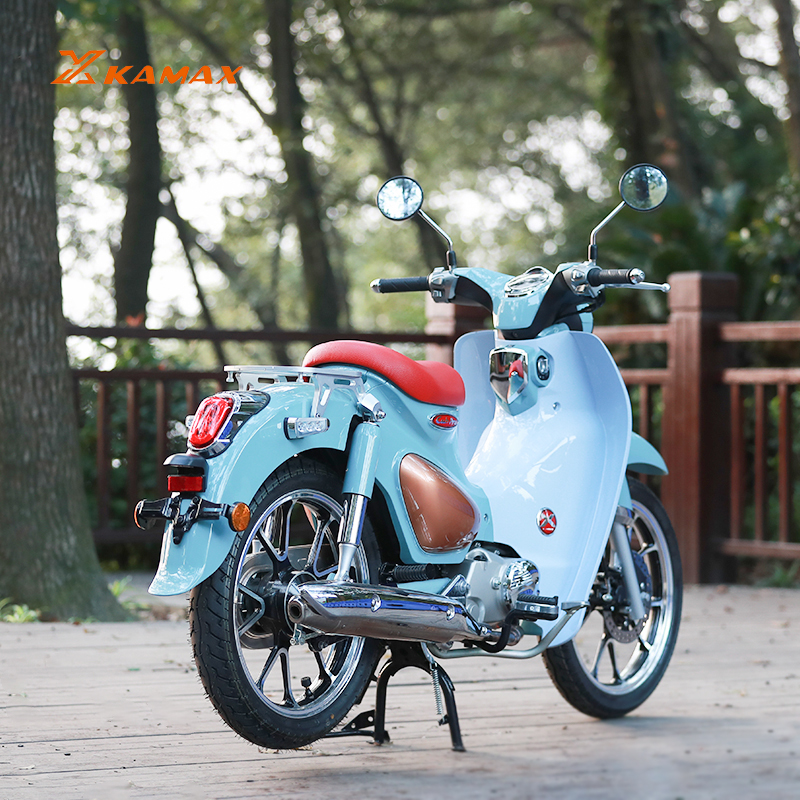

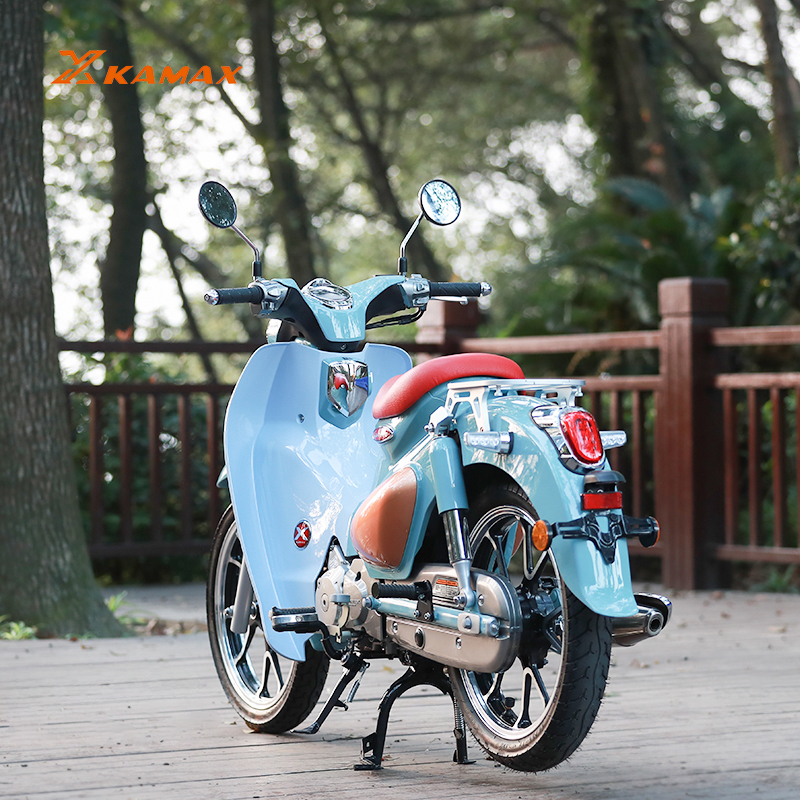

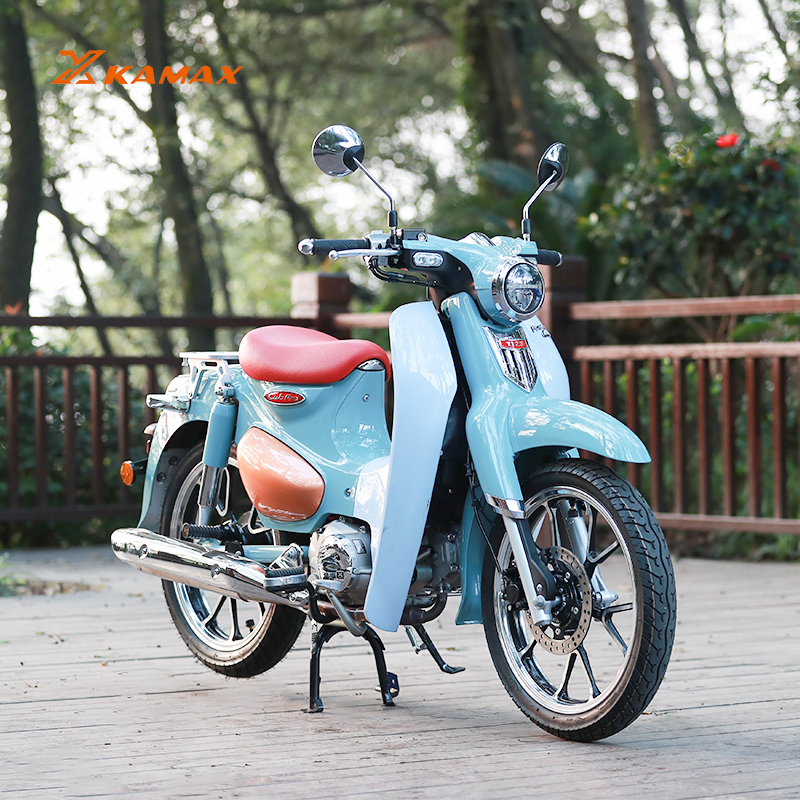

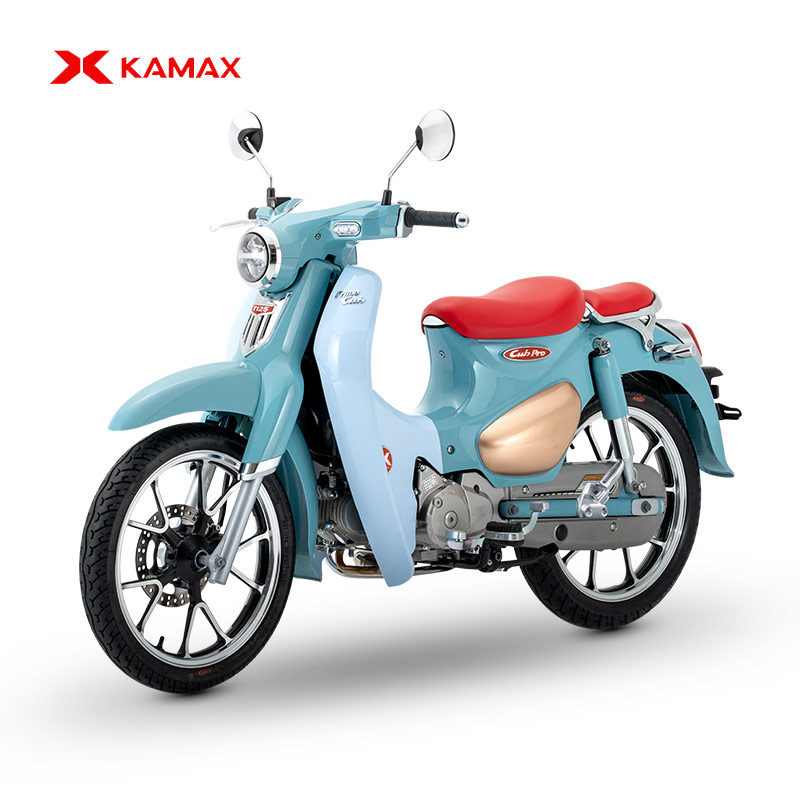

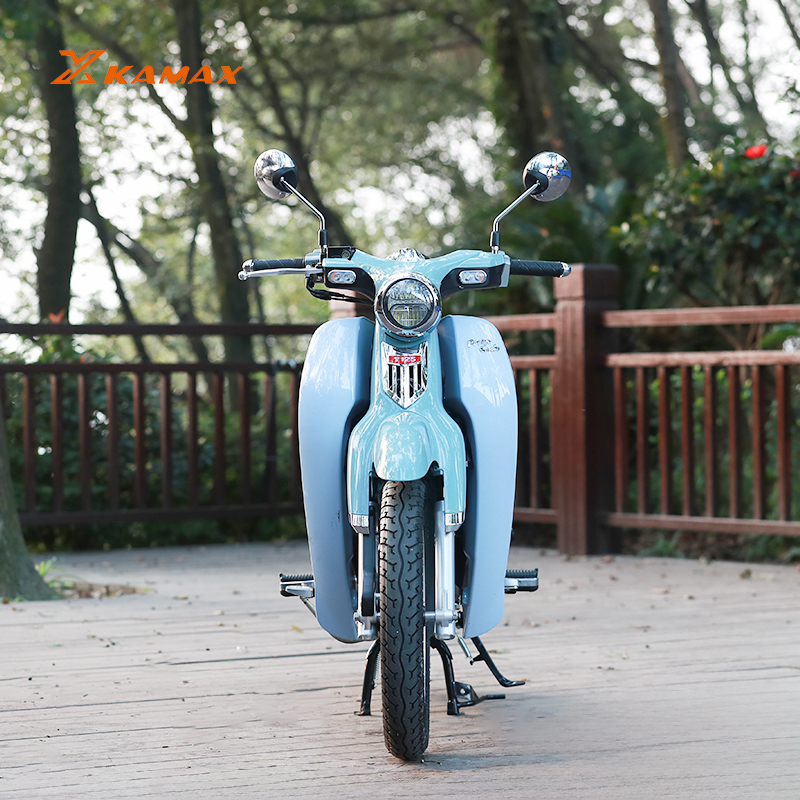

China Motos Factory OEM Underbone Motorcycle Sale KAMAX Cub Pro 125 – Jade Green
Dimensions | 1915mm×720mm×1010mm |
Wheelbase | 1245mm |
Minimum ground clearance | 125mm |
Seat height | 760mm |
Curb weight | 110kg |
Chassis | Steel tube frame |
Brake type | 220mm hydraulic disc (with/without ABS) / Drum brake |
- EFI/Carburetor
- ABS
- Rear seat
- Headlights stay on/with switch
- Side stand kill switch
- Aluminum wheels/Sp
Product Development Background
As the motorcycle industry chain upgrades and consumer attitudes change, through thorough market research, we have found that consumers’ demand for motorcycles is increasingly trending towards personalization, and they also prefer products with self-identity. Since its inception, Supercub has sold over 125 million units, and has a huge market capacity and recognition.
Therefore, our company has spent three years developing the retro-style Cub Pro, which is differentiated, personalized, and high-end in design patent and quality control. Currently, this type of retro motorcycle is not yet popular domestically or internationally, and holds tremendous business opportunities.
T125 Engine, Single Chanel ABS, Pure Electric Start, Dual Semi-Automatic Clutch, Four-Speed Gear With Protection, Full Gear Display. Bosch Efi System, Dual Catalyst And Carbon Canister, Aluminum Alloy Foot Shift Lever, Front And Rear Aluminum Wheels, Front Disc And Rear Drum Brakes, Keyless Smart Lock, LCD Instrument Panel, Full Led Lights, Yuanxing Front And Rear Tires, Front Tire: 80/90-17, Rear Tire: 90/90-17, Iron Rear Mudguard, 12V4AH Enhanced Maintenance-Free Battery, Front Aluminum Seat And Rear Iron Seat, Iron Rear Foot Pegs, Stainless Steel Muffler. Shutdown Switch On Side Stand.
- Target Audience: Consumers who have high demands for motorcycle quality, especially those who value riding experience and personalization.
- Certificate: Compliant with European Union standards EEC/COC Euro 5 and American standards DOT EPA.
Equipped with a LCD full liquid crystal instrument panel and automatic light-sensing function, allowing you to clearly see the screen even in changing lighting conditions, ensuring safe driving Tire pressure display function, allowing you to monitor your driving safety at any time and ensure your travel is safer and more reliable.
The front and rear vacuum tires are designed to be wider, with 80/90- 17 front tires and 90/90-17 rear tires, providing a more stable and comfortable riding experience.
The remote control seat lock makes it easy and convenient to show off your elegant style.
Designed with key anti-theft functions, such as automatic locking and unlocking reminders, to protect your beloved motorcycle with care.
Comes with an emergency shutdown switch to help you calmly deal with unexpected situations and ensure your travel safety.
Unique exterior design with automotive-grade chrome-plated emblems, shining brightly, adding glamour to your riding life.
The redesigned rear seating allows for flexible switching between carrying passengers and cargo
Fully rubberized universal composite leather, high resilience foam, sponge coating
Specification | |
Dimensions | 1915mm×720mm×1010mm |
Wheelbase | 1245mm |
Minimum ground clearance | 125mm |
Seat height | 760mm |
Curb weight | 110kg |
Chassis | Steel tube frame |
Brake type | 220mm hydraulic disc (with/without ABS) / Drum brake |
Fuel consumption rate | 68.8 km/L (with 2 riders)/ 70 km/L (with 1 rider) |
Minimum turning radius | 2.0m |
Brake operation method | By Hand/by foot |
Wheel rim type | Front and rear aluminum wheels (1.85*17 / 2.15*17 inches) |
Tire specification | Front 80/90 – 17 Rear 90/90 – 17 (vacuum tires) |
Battery | 12V4.5AH Enhanced maintenance-free |
Fuel tank capacity | 3.8L |
Gear ratios | 1. 22.729 2. 14.091 3. 10.454 4. 8.391 |
Front suspension | 26mm hydraulic telescopic front shock absorber, 3.5 inches of travel, Ø26 chrome plated fork tubes, bottom tube diameter Ø40 |
Rear suspension | Dual cylinder shock absorbers, with 3.6 inches of travel |
Sprocket and chain | 14T/38T 428HS |
EFI and Carburetor | Bosch / Deli PZ20 |
Caster angle | 26.5 degrees |
Specification | |
Engine Type | Single-cylinder, four-stroke, air-cooled, PGM- Fi electronic fuel injection (Bosch) /Carburator, four-speed |
Magneto-electric machine form | 12V8-stage full-wave DC (Carburetor) /12V12 – stage full-wave DC(EFI) |
Bore x Stroke | 52.4mm×57.8mm |
Displacement | 125cc |
Compression ratio | 9.56:1 |
Maximum torque and corresponding speed | 9.3 N·m /5000 rpm |
Maximum horsepower | 8.5 PS /8000 rpm |
Maximum power | 6.3 KW /7500 rpm |
Starting method | Electric start |
Fuel supply method | Electronic (PGM-FI)/ Naturally aspirated |
Ignition type | EFI/CDI |
Lubrication method | Pressure splash lubrication |
Transmission method | Four-speed |
Clutch type | Wet multi-plate clutch |
Drive mode | Chain drive |
Loading Capacity | SKD 144 Units/40HQ,CKD 192 Units/40HQ |
