Kamax / Motorcycle / Cub / Landscape Green

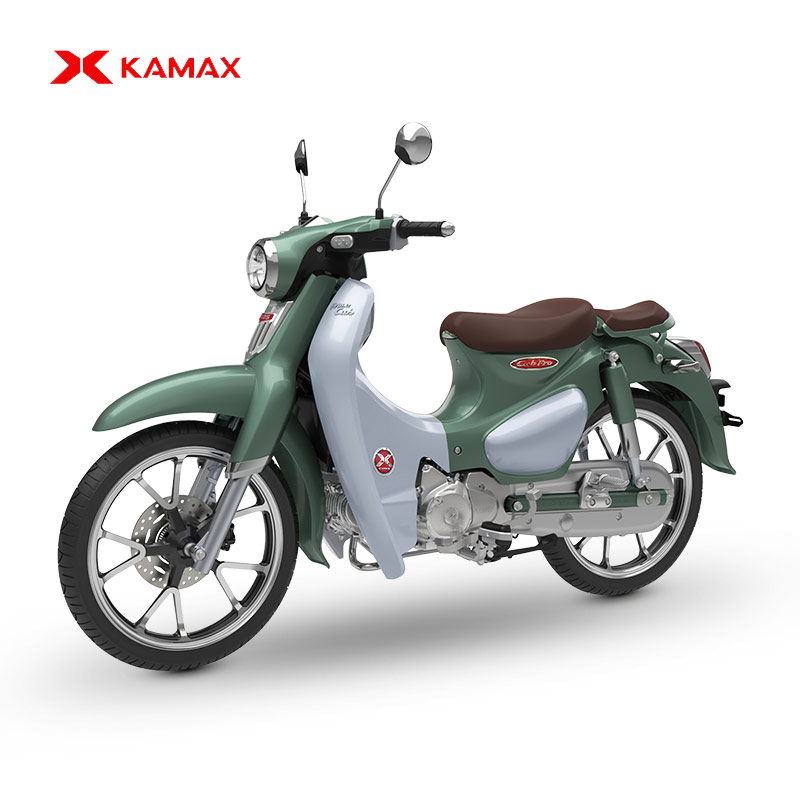

2024 New Underbone Motorcycle Price 125cc Motorbike KAMAX Cub Pro 125 – Landscape Green

Dimensions1915mm×720mm×1010mm
Wheelbase1245mm
Minimum ground clearance125mm
Seat height760mm
Curb weight110kg
ChassisSteel tube frame
Brake type220mm hydraulic disc (with/without ABS) / Drum brake

Share to

Product Development Background

As the motorcycle industry chain upgrades and consumer attitudes change, through thorough market research, we have found that consumers’ demand for motorcycles is increasingly trending towards personalization, and they also prefer products with self-identity. Since its inception, Supercub has sold over 125 million units, and has a huge market capacity and recognition.

Therefore, our company has spent three years developing the retro-style Cub Pro, which is differentiated, personalized, and high-end in design patent and quality control. Currently, this type of retro motorcycle is not yet popular domestically or internationally, and holds tremendous business opportunities.

T125 Engine, Single Chanel ABS, Pure Electric Start, Dual Semi-Automatic Clutch, Four-Speed Gear With Protection, Full Gear Display. Bosch Efi System, Dual Catalyst And Carbon Canister, Aluminum Alloy Foot Shift Lever, Front And Rear Aluminum Wheels, Front Disc And Rear Drum Brakes, Keyless Smart Lock, LCD Instrument Panel, Full Led Lights, Yuanxing Front And Rear Tires, Front Tire: 80/90-17, Rear Tire: 90/90-17, Iron Rear Mudguard, 12V4AH Enhanced Maintenance-Free Battery, Front Aluminum Seat And Rear Iron Seat, Iron Rear Foot Pegs, Stainless Steel Muffler. Shutdown Switch On Side Stand.

  • Target Audience: Consumers who have high demands for motorcycle quality, especially those who value riding experience and personalization.
  • Certificate: Compliant with European Union standards EEC/COC Euro 5 and American standards DOT EPA.
1759501374773542913

Equipped with a LCD full liquid crystal instrument panel and automatic light-sensing function, allowing you to clearly see the screen even in changing lighting conditions, ensuring safe driving Tire pressure display function, allowing you to monitor your driving safety at any time and ensure your travel is safer and more reliable.

1759501416422981634

The front and rear vacuum tires are designed to be wider, with 80/90- 17 front tires and 90/90-17 rear tires, providing a more stable and comfortable riding experience.

1759495155769950210

The remote control seat lock makes it easy and convenient to show off your elegant style.

Designed with key anti-theft functions, such as automatic locking and unlocking reminders, to protect your beloved motorcycle with care.

1759495816544796674

Comes with an emergency shutdown switch to help you calmly deal with unexpected situations and ensure your travel safety.

1759497355044864002

Unique exterior design with automotive-grade chrome-plated emblems, shining brightly, adding glamour to your riding life.

1759498655241355265

The redesigned rear seating allows for flexible switching between carrying passengers and cargo

Fully rubberized universal composite leather, high resilience foam, sponge coating

1759499770422902786
1759500076061835266
1759500379813330946
Specification
Dimensions1915mm×720mm×1010mm
Wheelbase1245mm
Minimum ground clearance125mm
Seat height760mm
Curb weight110kg
ChassisSteel tube frame
Brake type220mm hydraulic disc (with/without ABS) / Drum brake
Fuel consumption rate68.8 km/L (with 2 riders)/ 70 km/L (with 1 rider)
Minimum turning radius2.0m
Brake operation methodBy Hand/by foot
Wheel rim typeFront and rear aluminum wheels (1.85*17 / 2.15*17 inches)
Tire specificationFront 80/90 – 17 Rear 90/90 – 17 (vacuum tires)
Battery12V4.5AH Enhanced maintenance-free
Fuel tank capacity3.8L
Gear ratios1. 22.729 2. 14.091 3. 10.454 4. 8.391
Front suspension26mm hydraulic telescopic front shock absorber, 3.5 inches of travel, Ø26 chrome plated fork tubes, bottom tube diameter Ø40
Rear suspensionDual cylinder shock absorbers, with 3.6 inches of travel
Sprocket and chain14T/38T 428HS
EFI and CarburetorBosch / Deli PZ20
Caster angle26.5 degrees
1759489877573910530
Specification
Engine TypeSingle-cylinder, four-stroke, air-cooled, PGM- Fi electronic fuel injection (Bosch) /Carburator, four-speed
Magneto-electric machine form12V8-stage full-wave DC (Carburetor) /12V12 – stage full-wave DC(EFI)
Bore x Stroke52.4mm×57.8mm
Displacement125cc
Compression ratio9.56:1
Maximum torque and corresponding speed9.3 N·m /5000 rpm
Maximum horsepower8.5 PS /8000 rpm
Maximum power6.3 KW /7500 rpm
Starting methodElectric start
Fuel supply methodElectronic (PGM-FI)/ Naturally aspirated
Ignition typeEFI/CDI
Lubrication methodPressure splash lubrication
Transmission methodFour-speed
Clutch typeWet multi-plate clutch
Drive modeChain drive
Loading CapacitySKD 144 Units/40HQ,CKD 192 Units/40HQ
