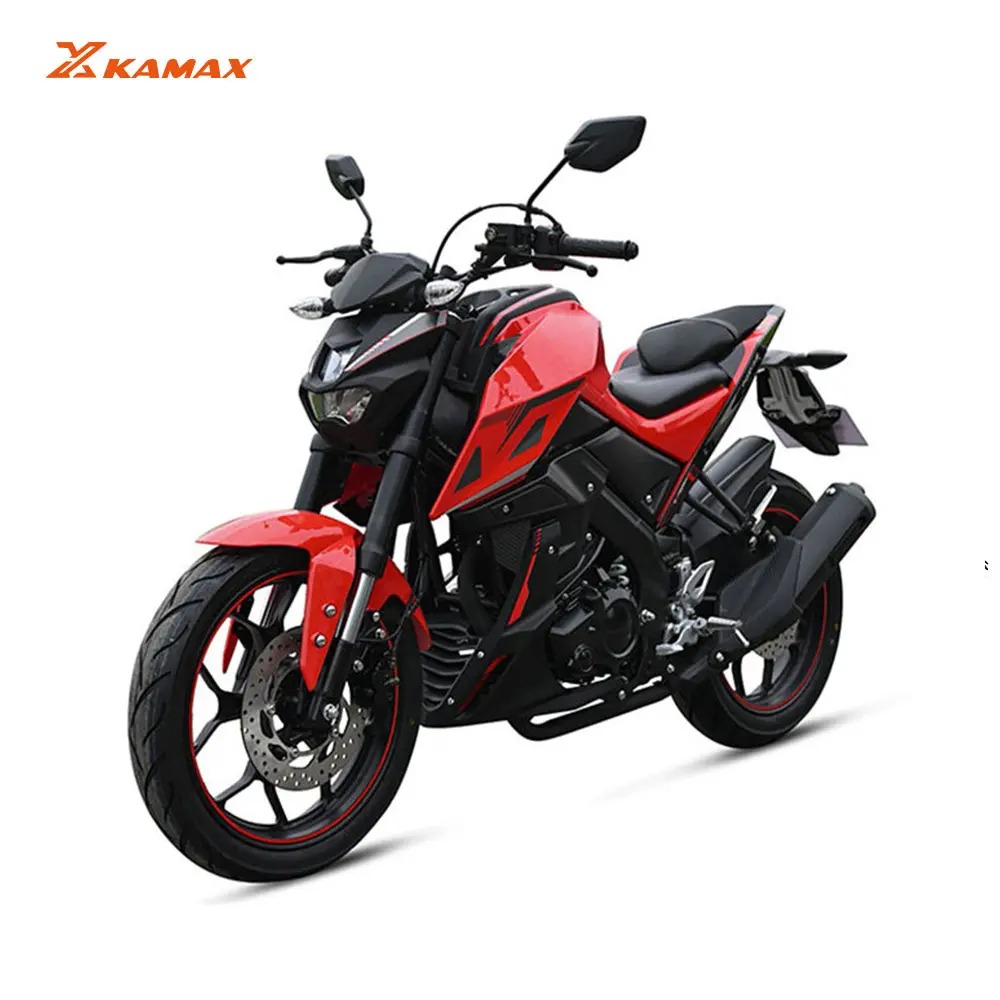

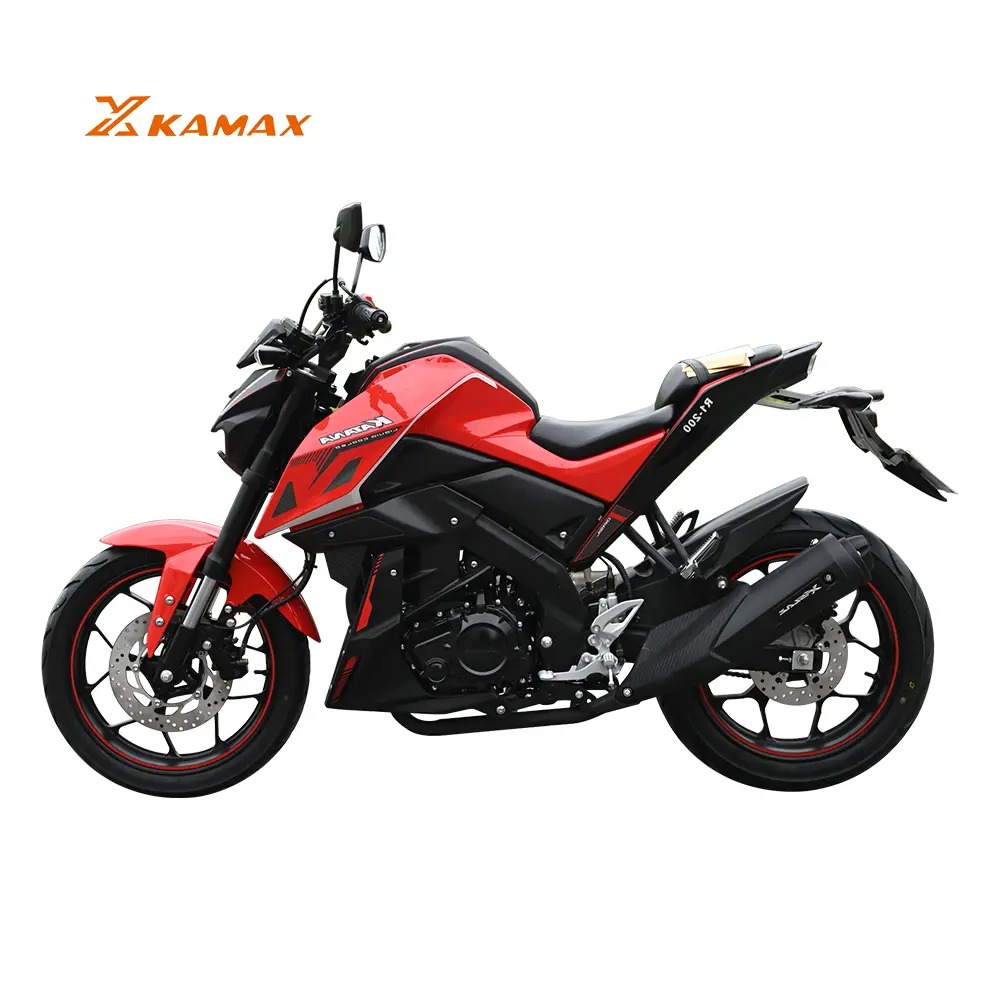

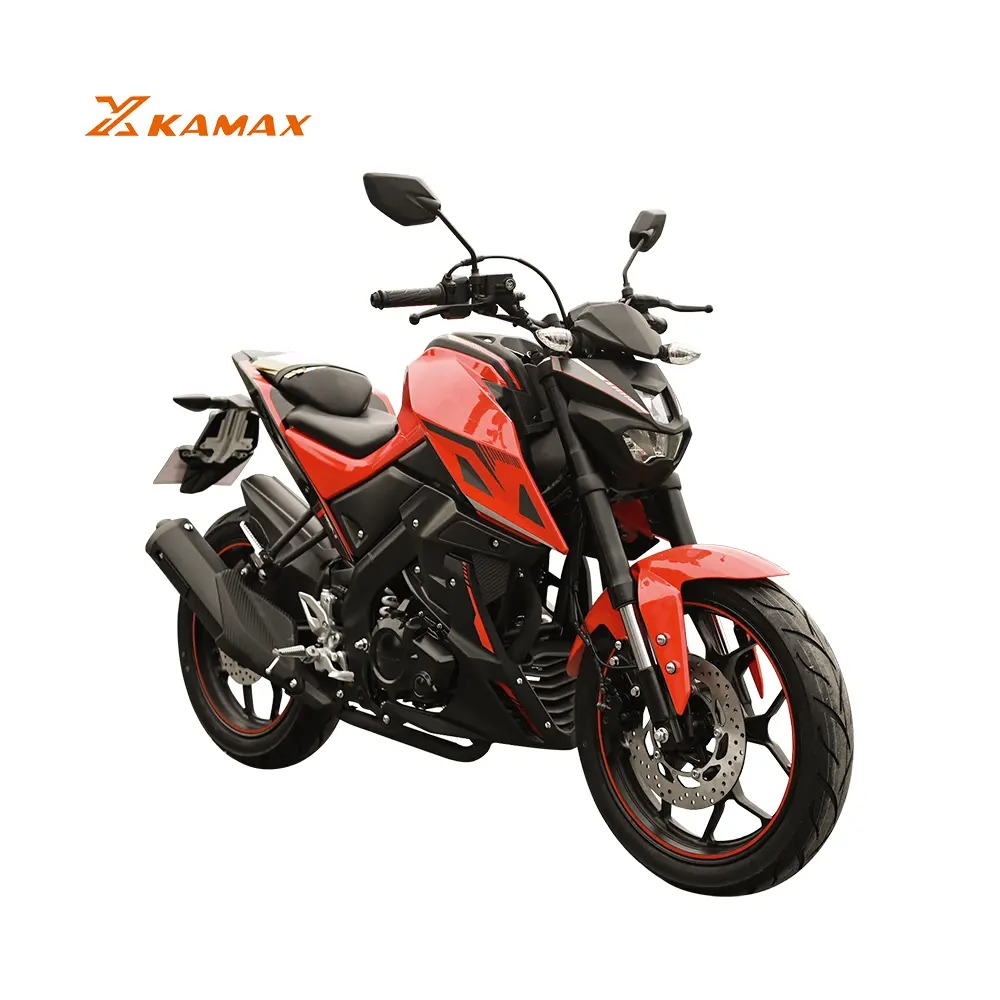

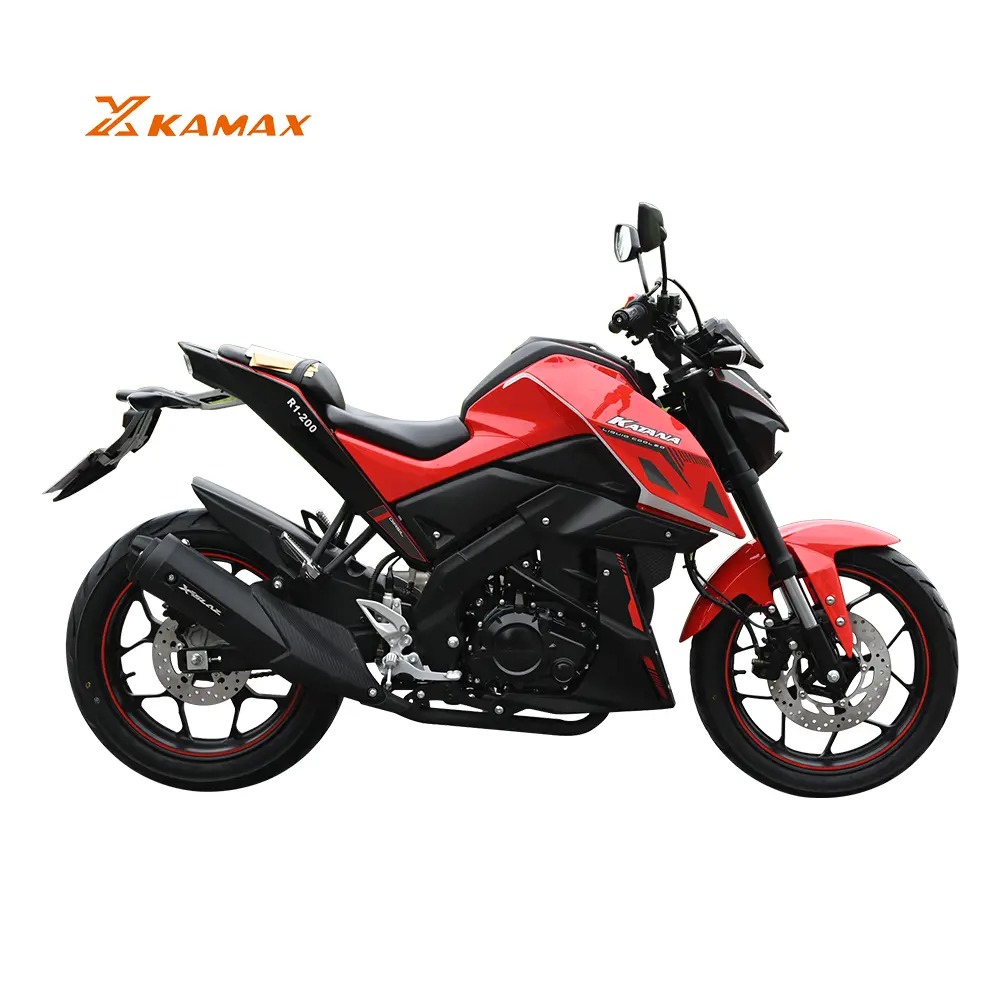

RUBY250

  • Engine Type: Loncin RE250, single cylinder, 4 stroke, water cooled
  • Displacement: 223ml
  • Bore*Stroke: 65.5*66.2ml
  • Max. Power(kw/rpm): 12/8000
  • Max. Torque(N.m/rpm): 17/6500
  • Max. Speed (Km/h): 95
  • Ignition: CDI
  • Starting System: Electric
  • Front Brake: Disc
  • Rear Brake: Disc
  • Front Tire: 110/70-17
  • Rear Tire: 130/70-17
  • Battery: 12V7Ah
  • Dimension: 2010*780*1070mm
  • Seat Height: 820mm
  • Wheelbase: 1360mm
  • Min. Ground Clearance: 174mm
  • Net Weight(kg): 127
  • Engine oil volume: 1L
  • Fuel Tank Capacity: 10.2L

Share to

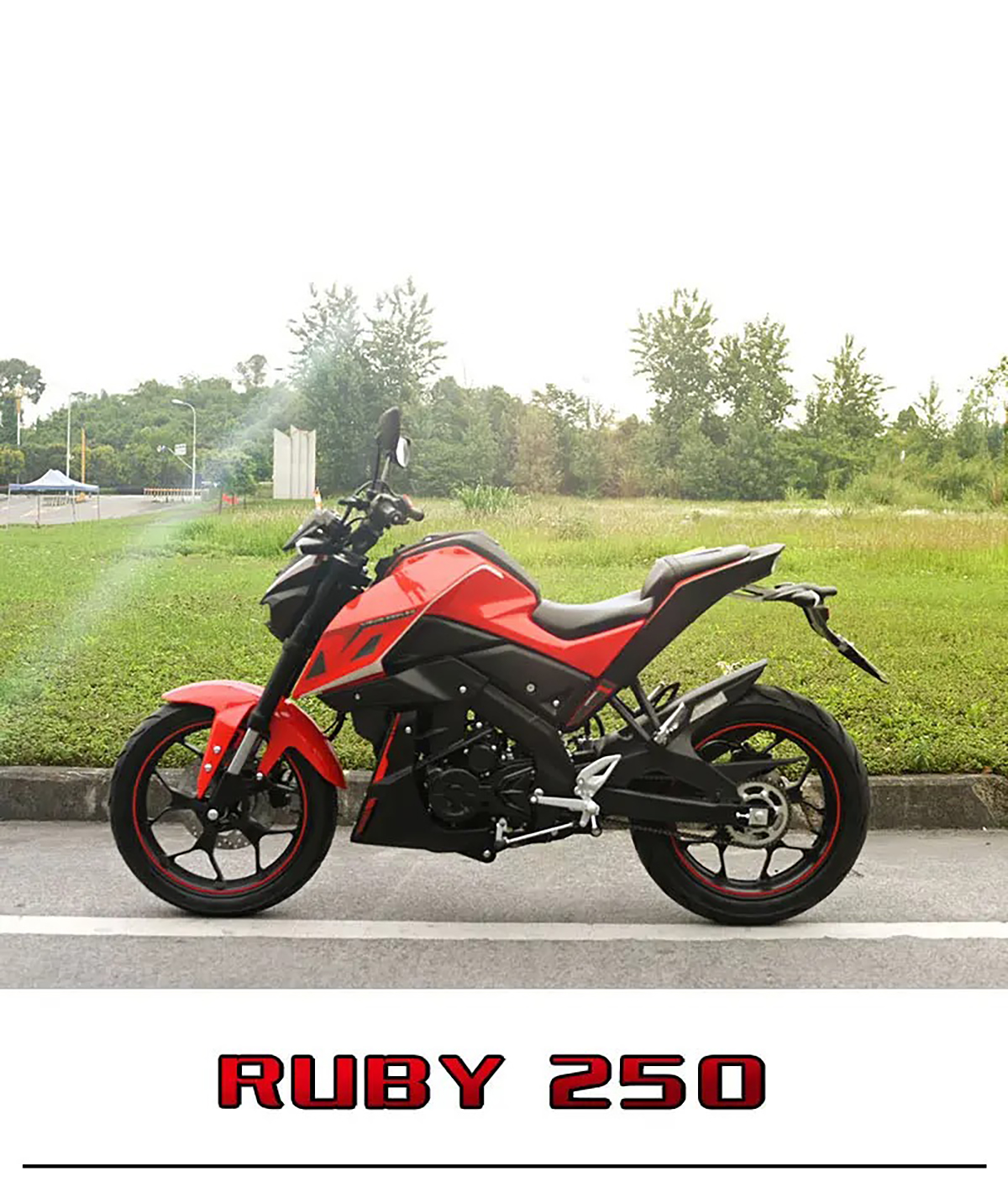

DM 20240425133535 008

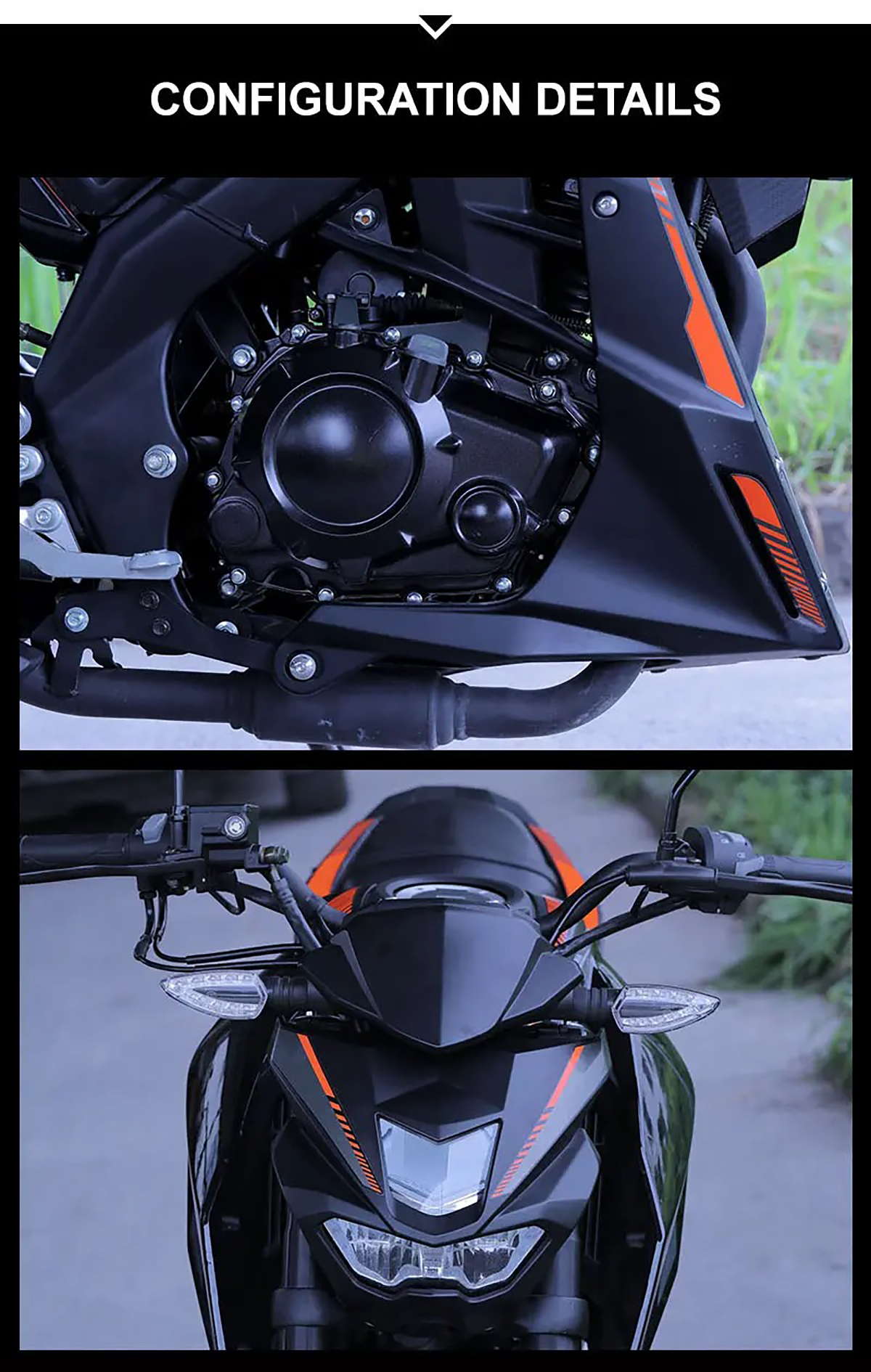

DM 20240425133535 009

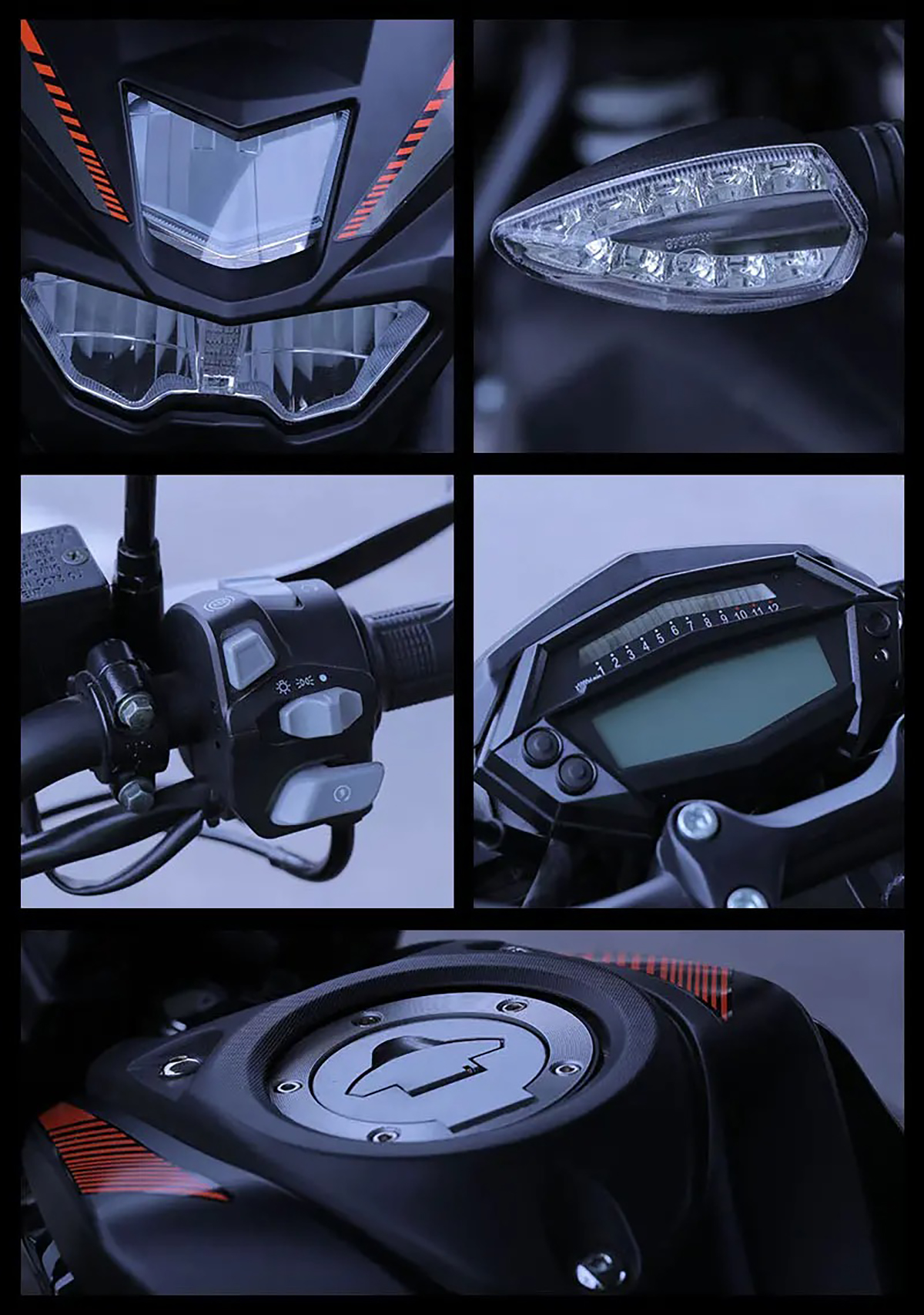

DM 20240425133535 010

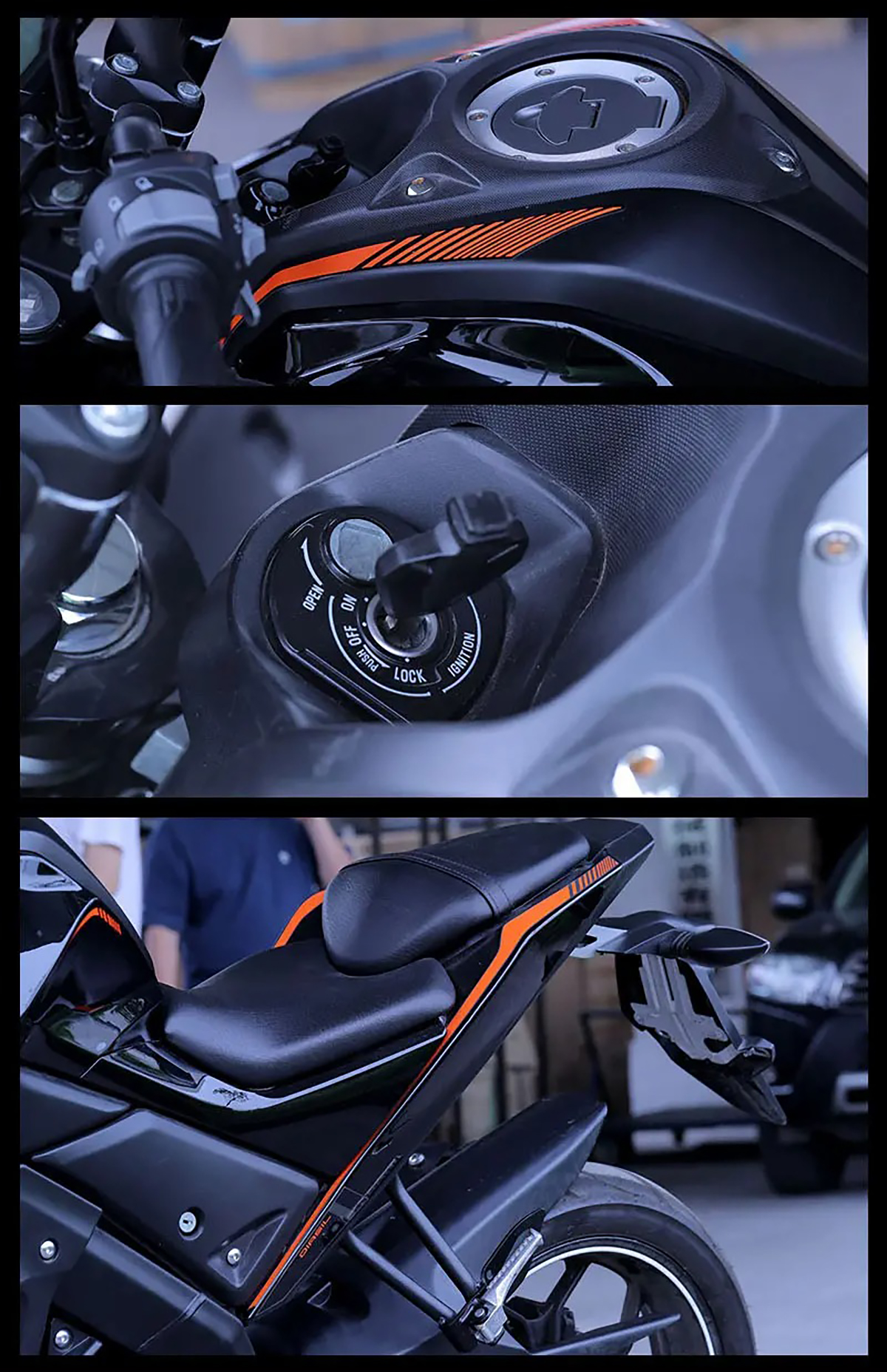

DM 20240425133535 011

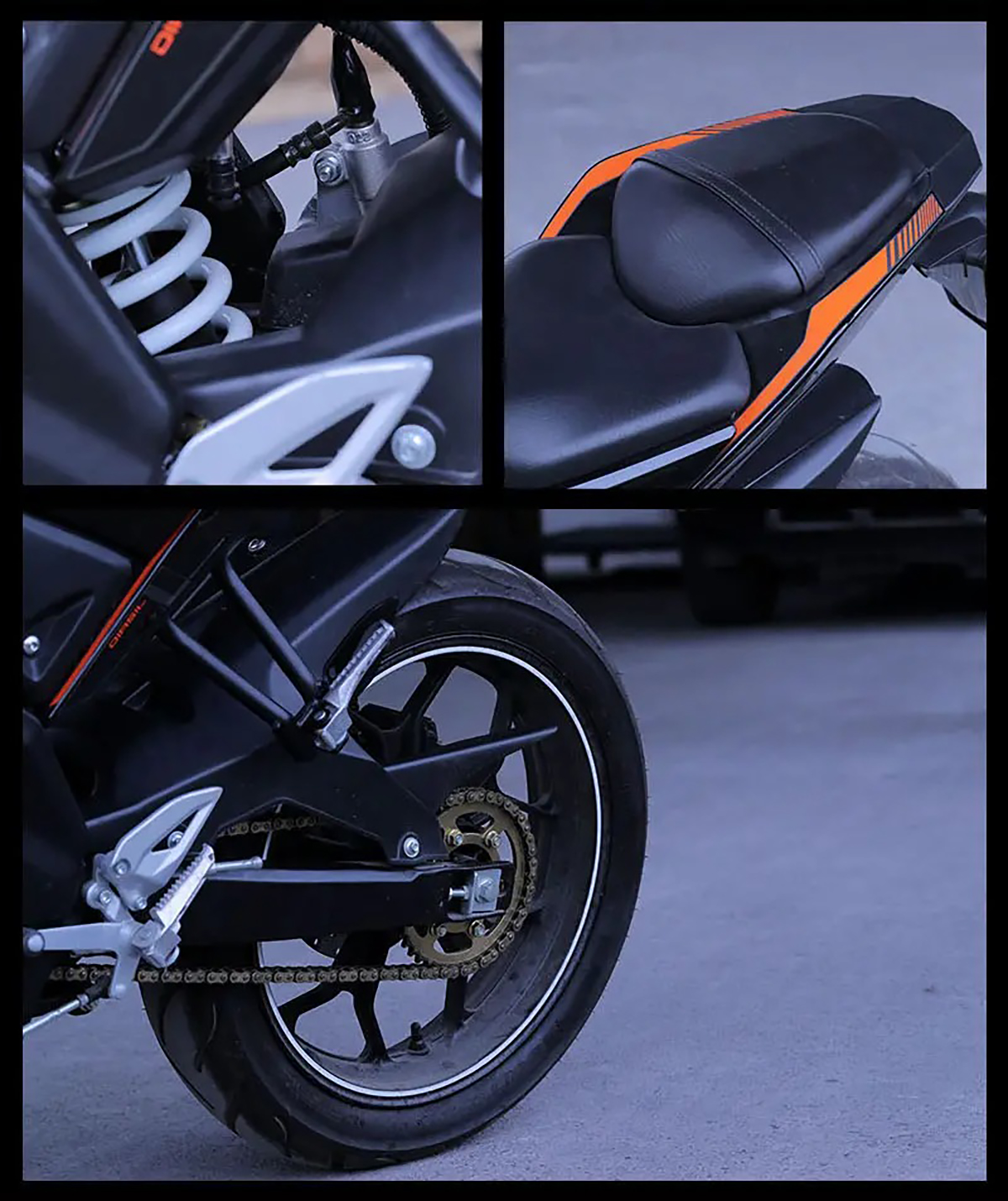

DM 20240425133535 012

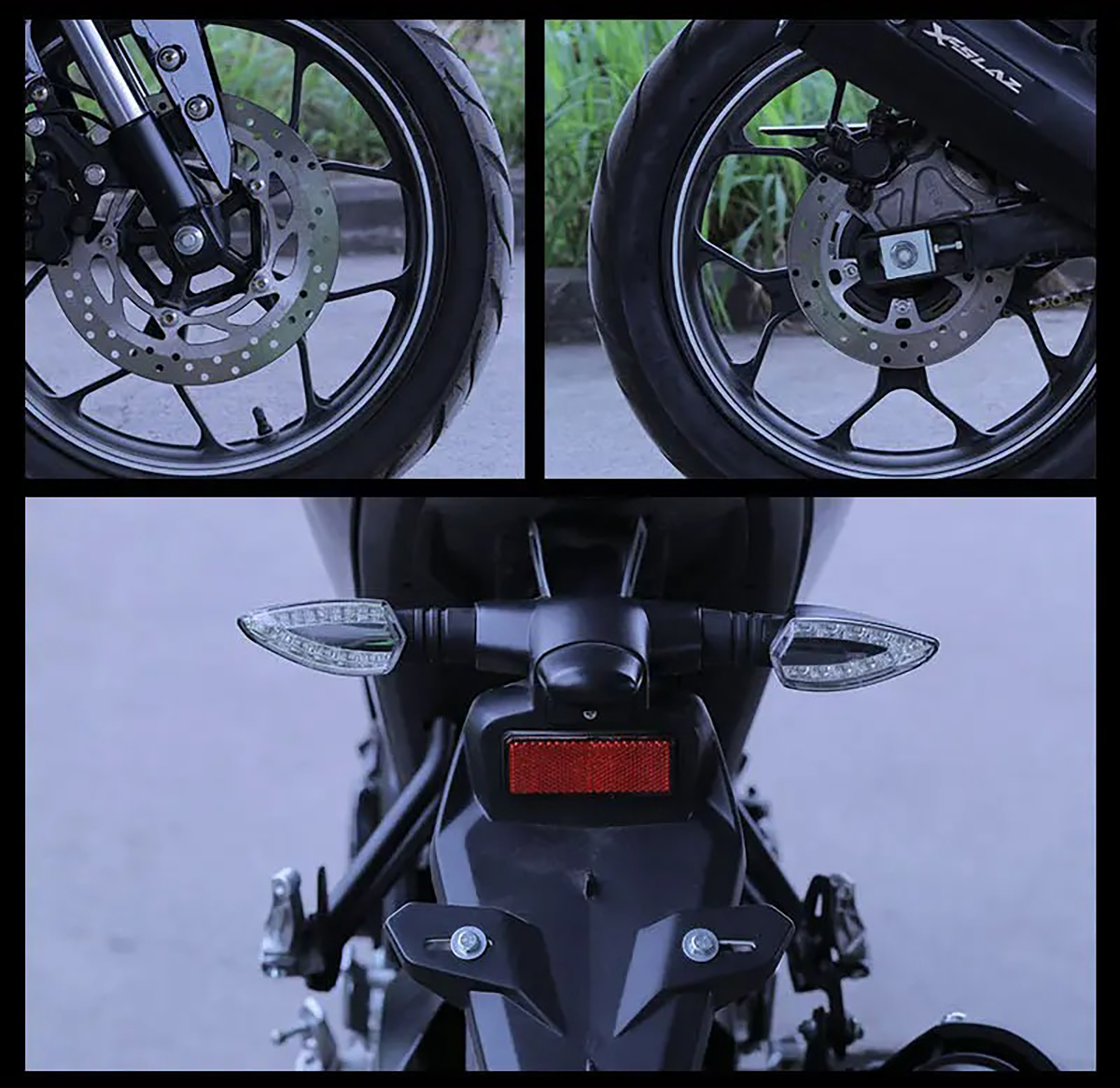

DM 20240425133535 013

Technical Description

Engine TypeLoncin RE250 engine, single cylinder, 4 stroke, air cooled, intemational 6 gears
Displacement (ml)223
Bore x Stroke (mm)65.5×66.2
Compression Ratio9.2:1
Max. Power (kw/r/min)12/8000
Max.Torque (N.m/r/min)17/6500
Max.Speed (Km/h)>95
LubricationPressure,splash
Clutch TypeMultiplate wet clutch, manual
lgnitionCDI
Starting SystemElectric
Transmission SystemChain drive
Chassis
Front BrakeDisc brake
Rear BrakeDisc brake
Front Tire110/70-17
Rear Tire130/70-17
Battery12V7Ah
Dimensions
L*W*H2010×780×1070
Seat Height(mm)820
Wheelbase(mm)1360
Min. ground clearance(mm)174
Max. Permissionable Weight (kg)275
Rider Capacity2 Persons
Net Weight (kg)127
Engine Oil volume(L)1L
Fuel Tank Capacity (L)10.2L
Minimum fuel consumption<3.54
Others
Packing Size (mm)1820×510×860
Packing Weight (kg)146
Container Loading Capacity87PCS/40HQ,28PCS/20GP
Colorsred, blue, black,yellow
